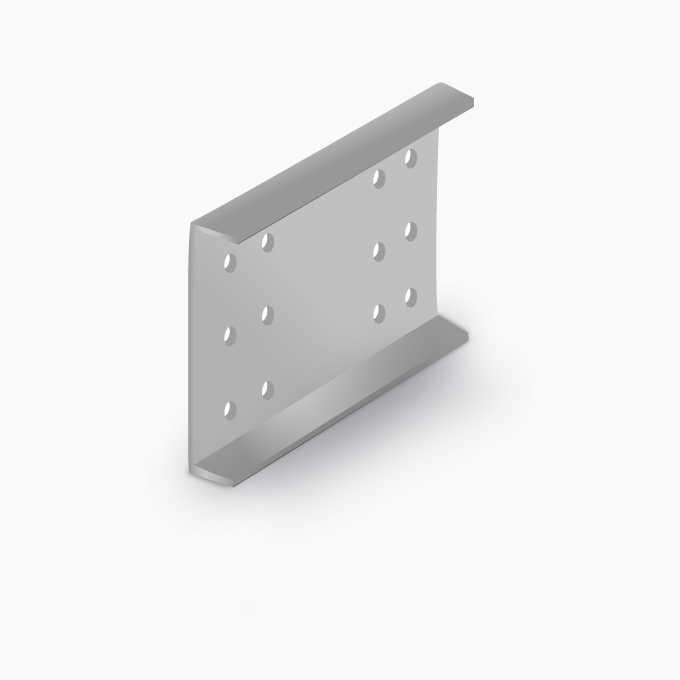

bracket-for-200mm-fiberline

Accessories for profiles 0° for 300 mm bracket

Item no. 163000
€ 61.20
excl. VAT

The brackets are used to assemble Fiberline structural profiles that are subject to tensile and compressive forces, bending moment and shear, e.g. I and U profiles.

The brackets are designed for efficient assembly and load transmission. The brackets can transmit a greater shear force than the profile. This simplifies the sizing of the assembly.

Material: The brackets are made of acid-resistant stainless steel (1.4404 / AISI 316L) and are delivered pickled for maximum durability.

Number of holes: 12. The holes are over-dimensioned by 1.0 mm in relation to the bolt.

The bracket fits the profile heights 300 mm.

Out of stock

Need help? Need help?
+4536388100
Get in touch

Not a member yet?

See personal prices, cut to size & view order history.

Request for a login

Description

The brackets are used to assemble Fiberline structural profiles that are subject to tensile and compressive forces, bending moment and shear, e.g. I and U profiles.

The brackets are designed for efficient assembly and load transmission. The brackets can transmit a greater shear force than the profile. This simplifies the sizing of the assembly.

Material: The brackets are made of acid-resistant stainless steel (1.4404 / AISI 316L) and are delivered pickled for maximum durability.

Number of holes: 12. The holes are over-dimensioned by 1.0 mm in relation to the bolt.

The bracket fits the profile heights 300 mm.

Combining advantages

CE MARKING

Our products are CE certified according to the EN13706 1-3 standard. This certification is your guarantee of consistently high quality every time you buy from us and use our products. Read more

LOW WEIGHT

Fiberglass enables lightweight and robust constructions, making installation faster. Although the material is comparable to steel, the specific weight of Fiberglass is only a quarter of steel. Read more

STRENGTH & STIFFNESS

Fiberglass is an exceptionally strong material, rivaling steel, aluminum, and wood. Composite profiles offer similar weight to aluminum, while being just 20% the weight of concrete and 40% of steel, making them highly efficient. Read more

CORROSION-FREE

Composite materials are generally very durable, with only a few exceptions. They resist a variety of aggressive liquids and environments, resulting in long lifespan and minimal need for maintenance. Read more

WEATHER RESISTANT

Fiberglass is UV-resistant and can withstand temperatures between -40 and +80 degrees Celsius without deterioration of its properties. Additionally, it tolerates seawater and other atmospheric influences. Read more

ELECTRICAL INSULATION

Fiberglass profiles are electrically insulating. They are suitable for use in connection with all electrical constructions, such as along railway tracks, power plant installations, etc., as they are suitable for both low and medium voltage. Read more

EASY TO WORK WITH

The processing of fiberglass profiles is significantly easier than for metals such as steel, and just as efficient as for wood. This makes it easy to handle solutions with our profiles on site. Read more

THERMALLY INSULATING

Fiberline's fiberglass profiles have a significantly higher thermal insulating capacity compared to steel and aluminum. Read more

SUSTAINABLE

Fiberline's products are manufactured energy-efficiently through pultrusion. The low weight relative to strength and long lifespan make them a cost- and energy-efficient alternative. Read more
