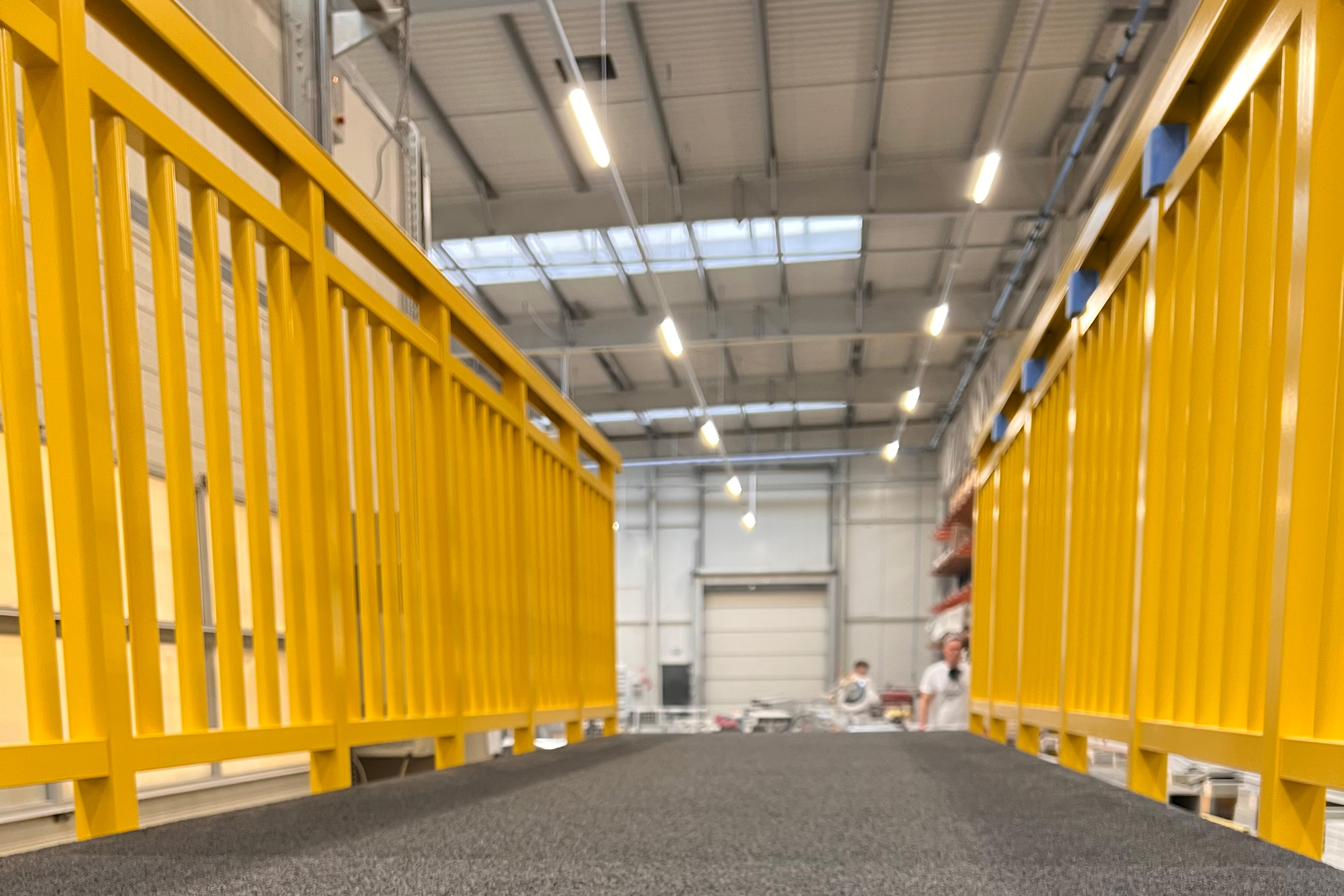

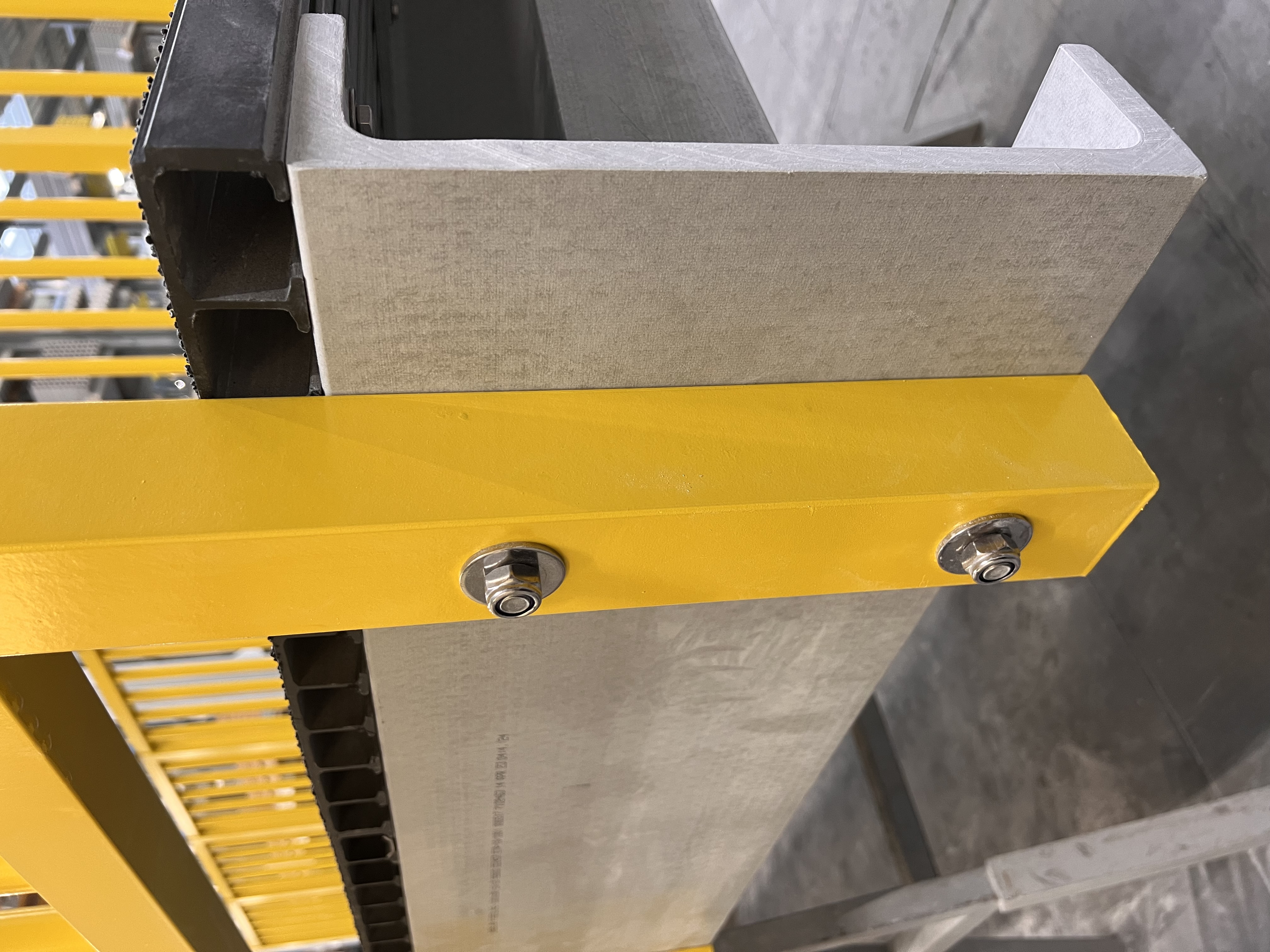

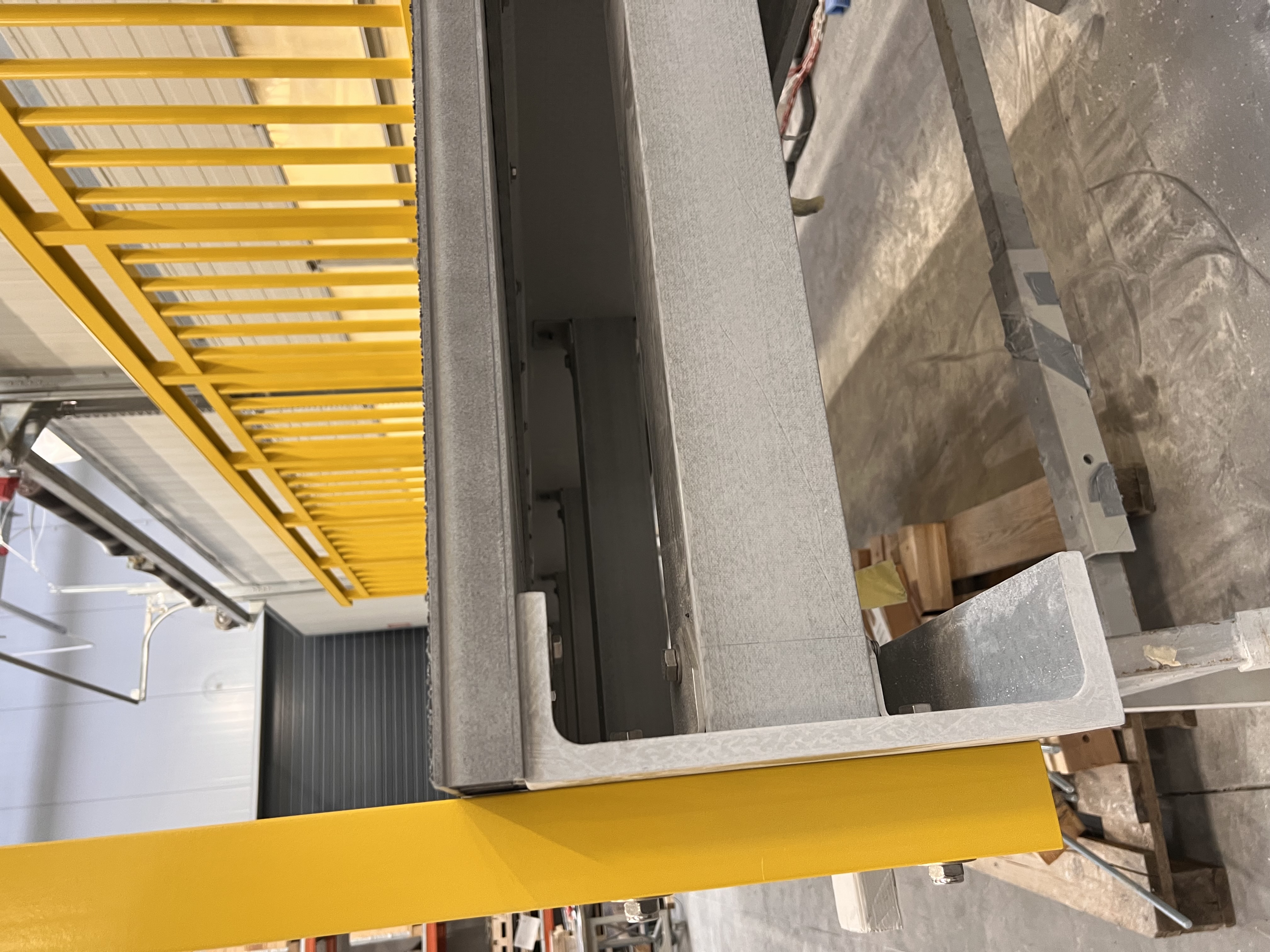

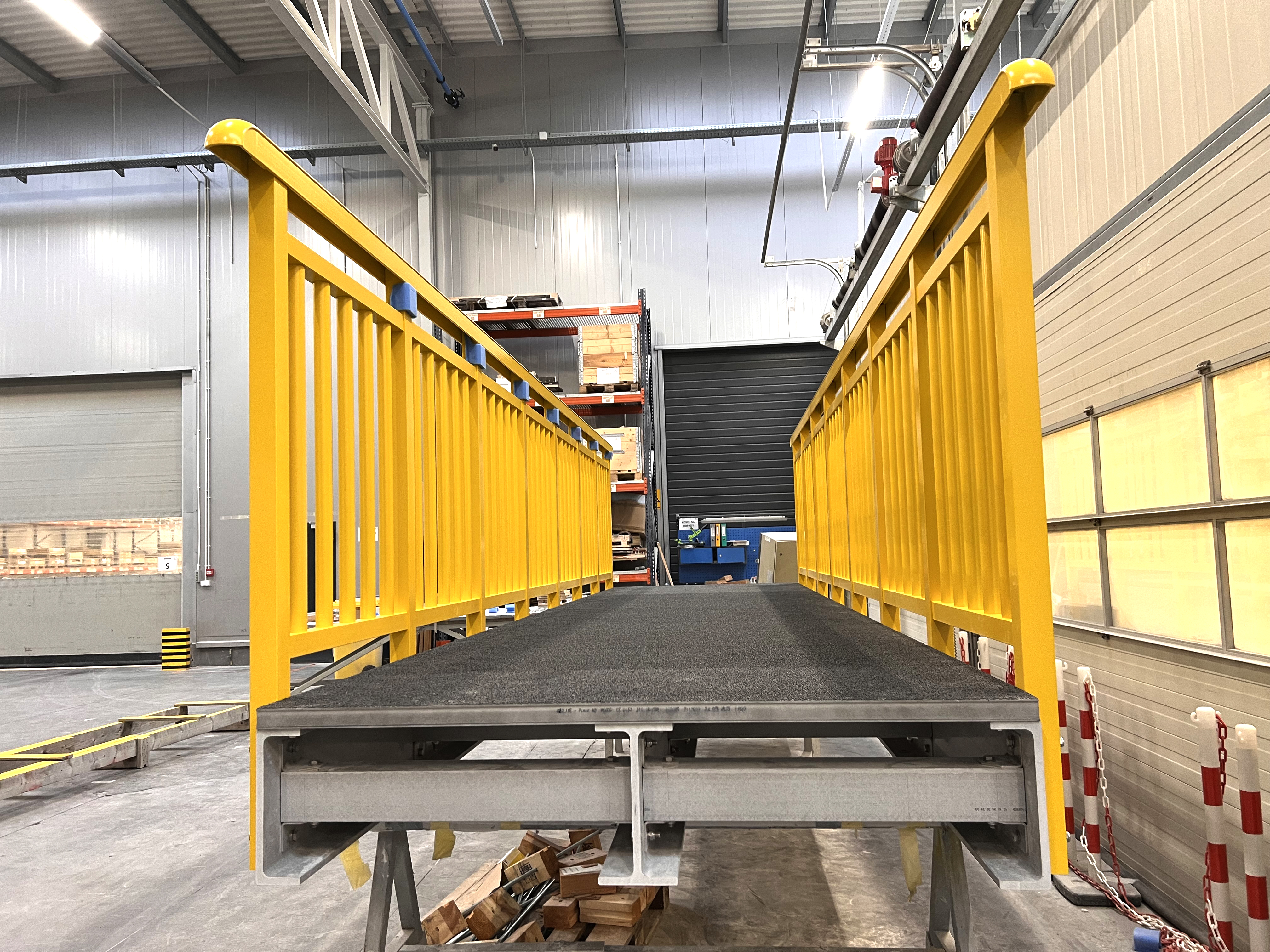

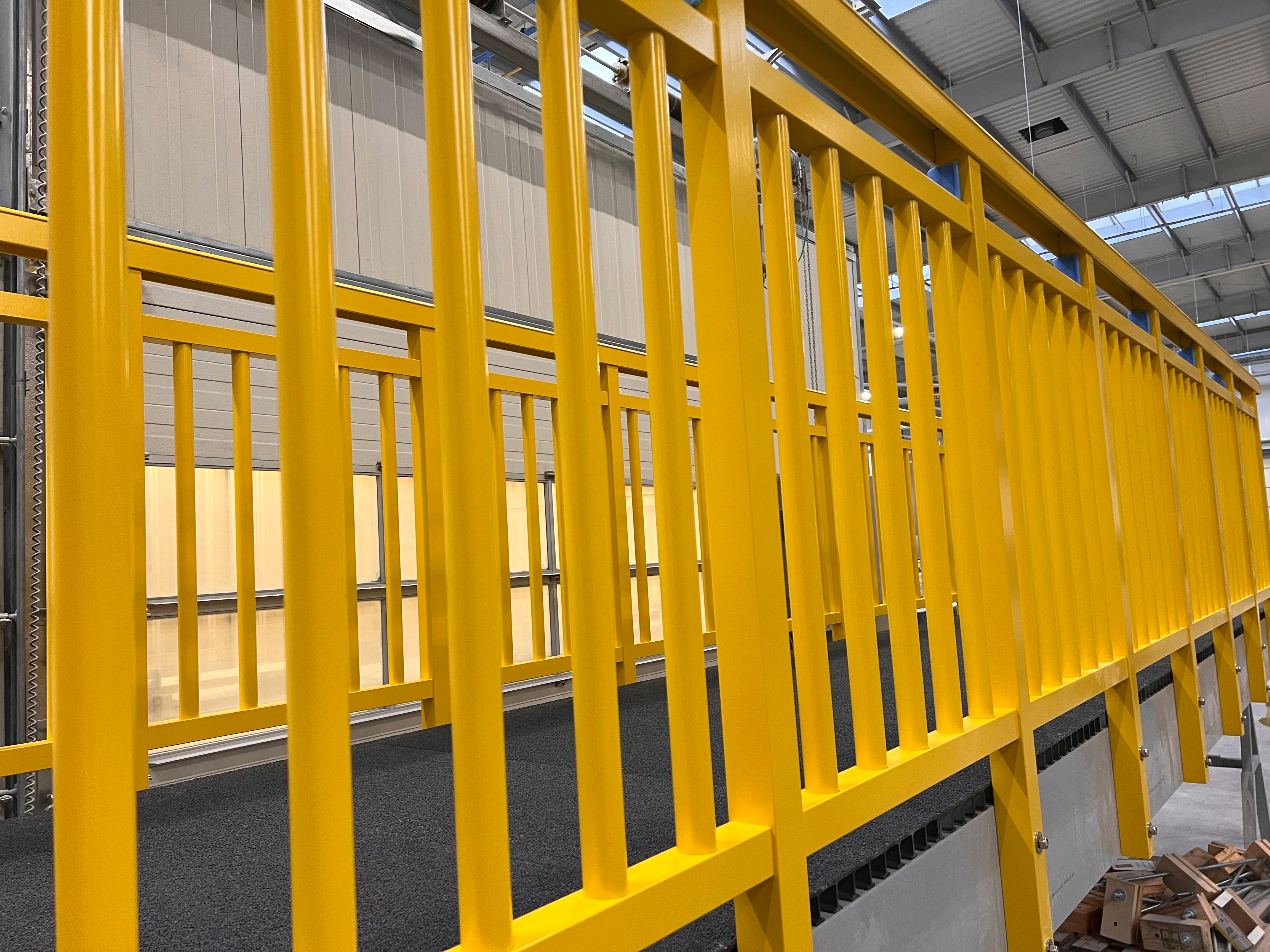

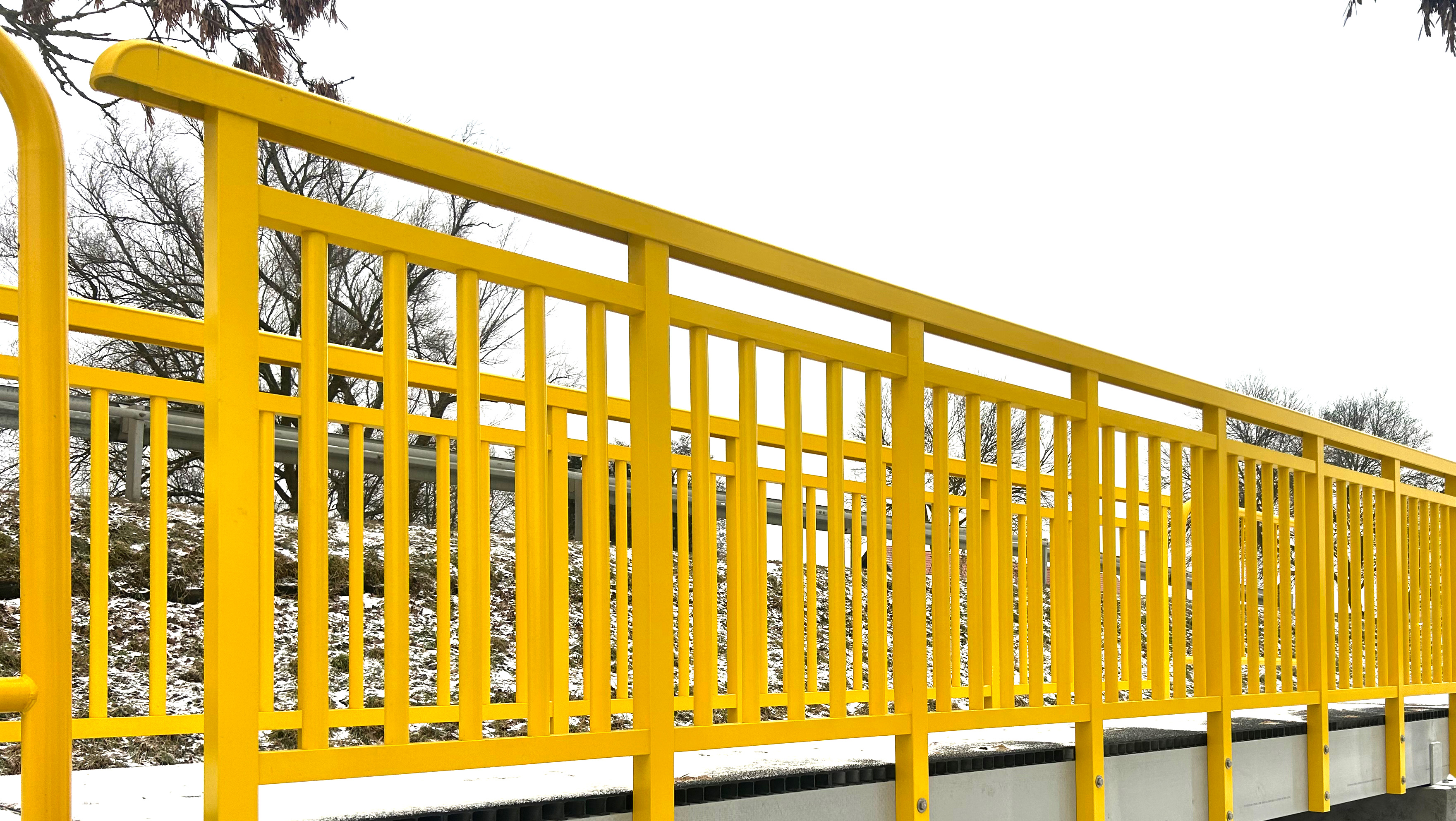

Yellow GRP square tube used as a baluster in a Fiberline handrail system

Square tubes 60 x 60 x 5 mm

Our square tubes offer the same high strength as steel but at only ¼ of the density, enabling weight savings and easier installation. Other benefits include excellent corrosion and chemical resistance as well as electrical insulation properties. Colour: RAL 1016

Products View product overview

+4536388100

Get in touch

Not a member yet?

See personal prices, cut to size & view order history.

Request for a login

Description

Applications
The square tube is primarily designed to carry compressive loads, making it suitable for columns and balusters in stair and corridor handrail systems, as well as in cooling towers.

Quality and standards
Our profiles are certified according to a range of recognised standards, including CE, aBG and EN13706. This ensures consistently high quality every time you choose Fiberline.

Colour
RAL 1016

Quality and standards

ISO 9001

ISO At Fiberline Building Profiles we use the quality management system ISO 9001 as an active tool.

EN 13706-3:2002

Our structural profiles and planks are certified according to the European standard EN 13706, which applies solely to pultruded profiles for structural purposes.

CE-marking

Our entire programme of fibreglass profiles and planks are CE marked, which is your guarantee that our building materials meet existing requirements in EU.

Click here for more info about Fiberline certifications and norms

Specifications

Moment of inertia	0,57x10⁶ mm⁴
E-modul	25000.0 MPa
Colour	RAL 1016
Quality	CE
Weight	1.98 kg/m.

Video

Downloads

.pdf Data sheet .dwg .dwg files .stp .stp files

Standard lengths

60 x 60 x 5 x 6000 mm

Item no. 0602400002

Height

60 mm

Width

60 mm

Thickness

5/5

Length

6000 mm

Tolerance

+20/-0

Quality

Cut in two

Tick the box if you want the profile to be cut into two identical lenghts of:

Length (mm): 3000 Tolerance: +/-5

Cut to size Custom produced lengths

Cut your item down to the sizes you need for your project. The current profile length you have selected will be cut up to the lengths you specify below under "cutting". If you want more lengths cut in the same way, increase the number (on the green button).

You need to be a member to buy this product.

Log in to your company account and get access to order products with custom length and get an overview of agreed discounts.

Apply for membership

Fiberline can use the cut-off waste for recycling

Profiles that can no longer be used must be taken to a recycling centre. We’ll take care of the process.

I wish Fiberline handles the profile remnants I want to receive the profile remnants

Please select one of the two options above to proceed.

Note! You have meters. Left to cut from: mm. Note! You need to add meters. Note! You need to remove meters. Note! You have mm. Left to cut from: mm. Note! You need to add mm. Note! You need to remove mm.

Summary

Out of stock

60 x 60 x 5 x 12000 mm

Item no. 0602400006

Height

60 mm

Width

60 mm

Thickness

5/5

Length

12000 mm

Tolerance

+20/-0

Quality

Cut in two

Tick the box if you want the profile to be cut into two identical lenghts of:

Length (mm): 6000 Tolerance: +/-5

Cut to size Custom produced lengths

You need to be a member to buy this product.

Log in to your company account and get access to order products with custom length and get an overview of agreed discounts.

Apply for membership

Fiberline can use the cut-off waste for recycling

Profiles that can no longer be used must be taken to a recycling centre. We’ll take care of the process.

I wish Fiberline handles the profile remnants I want to receive the profile remnants

Please select one of the two options above to proceed.

Summary

Out of stock

Other lengths

60 x 60 x 5 x 4000 mm

Item no. 0602400003

Height

60 mm

Width

60 mm

Thickness

5/5

Length

4000 mm

Tolerance

+20/-0

Quality

Cut to size Custom produced lengths

You need to be a member to buy this product.

Log in to your company account and get access to order products with custom length and get an overview of agreed discounts.

Apply for membership

Fiberline can use the cut-off waste for recycling

Profiles that can no longer be used must be taken to a recycling centre. We’ll take care of the process.

I wish Fiberline handles the profile remnants I want to receive the profile remnants

Please select one of the two options above to proceed.

Summary

Customized lengths (min. quantity required)

60 x 60 x 5 mm

Item no. 060240P

Height

60 mm

Width

60 mm

Thickness

5/5

Length

Tolerance

Quality

Cut to size Custom produced lengths

You need to be a member to buy this product.

Log in to your company account and get access to order products with custom length and get an overview of agreed discounts.

Apply for membership

Fiberline can use the cut-off waste for recycling

Profiles that can no longer be used must be taken to a recycling centre. We’ll take care of the process.

I wish Fiberline handles the profile remnants I want to receive the profile remnants

Please select one of the two options above to proceed.

Summary

Combining advantages

CE MARKING

Our products are CE certified according to the EN13706 1-3 standard. This certification is your guarantee of consistently high quality every time you buy from us and use our products. Read more

LOW WEIGHT

Fiberglass enables lightweight and robust constructions, making installation faster. Although the material is comparable to steel, the specific weight of Fiberglass is only a quarter of steel. Read more

STRENGTH & STIFFNESS

Fiberglass is an exceptionally strong material, rivaling steel, aluminum, and wood. Composite profiles offer similar weight to aluminum, while being just 20% the weight of concrete and 40% of steel, making them highly efficient. Read more

CORROSION-FREE

Composite materials are generally very durable, with only a few exceptions. They resist a variety of aggressive liquids and environments, resulting in long lifespan and minimal need for maintenance. Read more

WEATHER RESISTANT

Fiberglass is UV-resistant and can withstand temperatures between -40 and +80 degrees Celsius without deterioration of its properties. Additionally, it tolerates seawater and other atmospheric influences. Read more

ELECTRICAL INSULATION

Fiberglass profiles are electrically insulating. They are suitable for use in connection with all electrical constructions, such as along railway tracks, power plant installations, etc., as they are suitable for both low and medium voltage. Read more

EASY TO WORK WITH

The processing of fiberglass profiles is significantly easier than for metals such as steel, and just as efficient as for wood. This makes it easy to handle solutions with our profiles on site. Read more

THERMALLY INSULATING

Fiberline's fiberglass profiles have a significantly higher thermal insulating capacity compared to steel and aluminum. Read more

SUSTAINABLE

Fiberline's products are manufactured energy-efficiently through pultrusion. The low weight relative to strength and long lifespan make them a cost- and energy-efficient alternative. Read more
