20 years guarantee

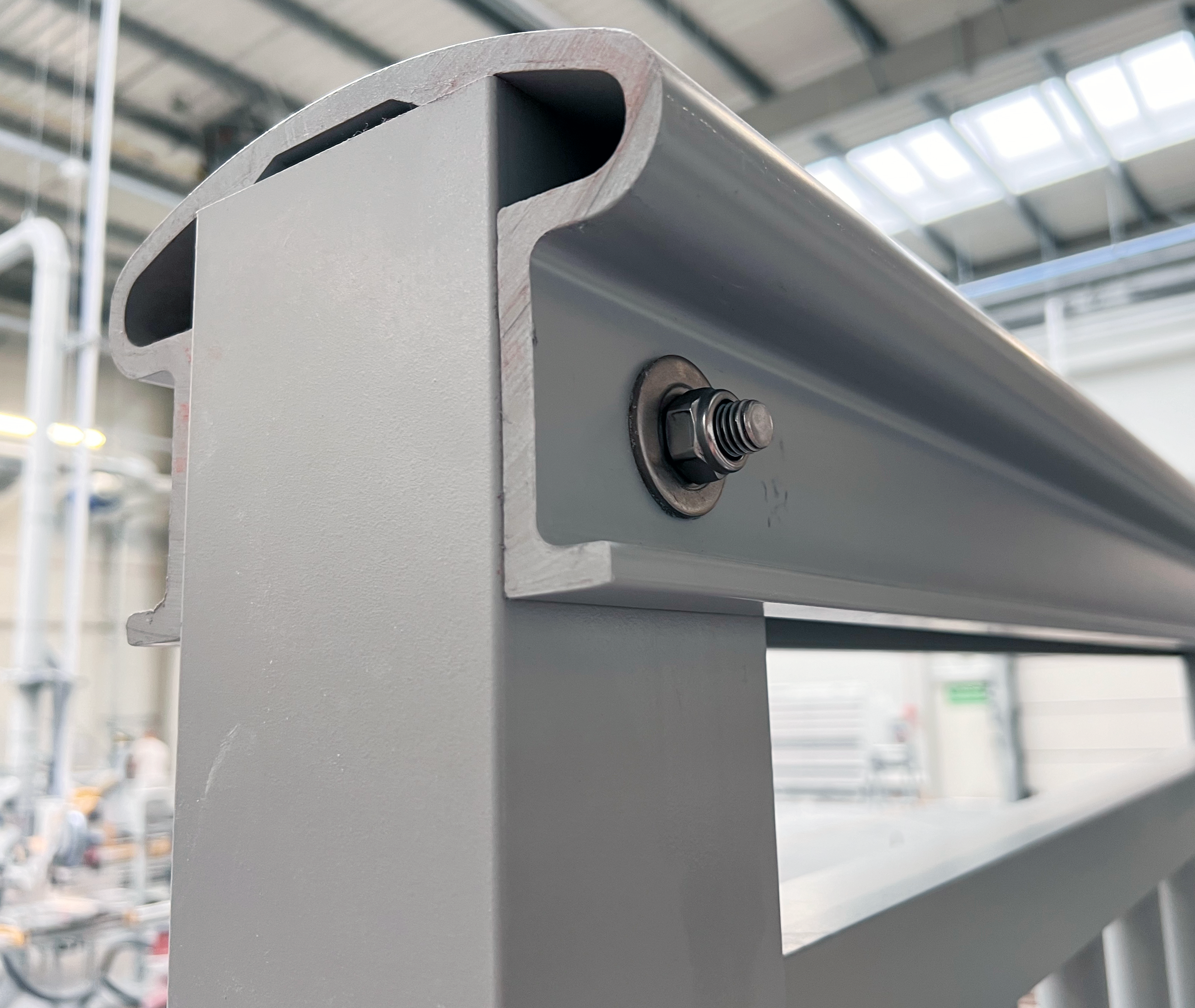

Handrail profiles 180 x 120 x 8 mm

Fiberline’s handrails ensure durable solutions for railings, stairs and walkways for in your next project. The handrails are corrosion-free and have a long service life, even under demanding and corrosive conditions, such as e.g. inoffshore, swimming pools, industryrial, and cooling towers settingsand offshore. Other advantages include great strength, low weight and electrical insulation.




Not a member yet?

See personal prices, cut to size & view order history.

Request for a login

Description

Fiberline’s handrails ensure durable solutions for railings, stairs and walkways for in your next project. The handrails are corrosion-free and have a long service life, even under demanding and corrosive conditions, such as e.g. inoffshore, swimming pools, industryrial, and cooling towers settingsand offshore. Other advantages include great strength, low weight and electrical insulation.



Application

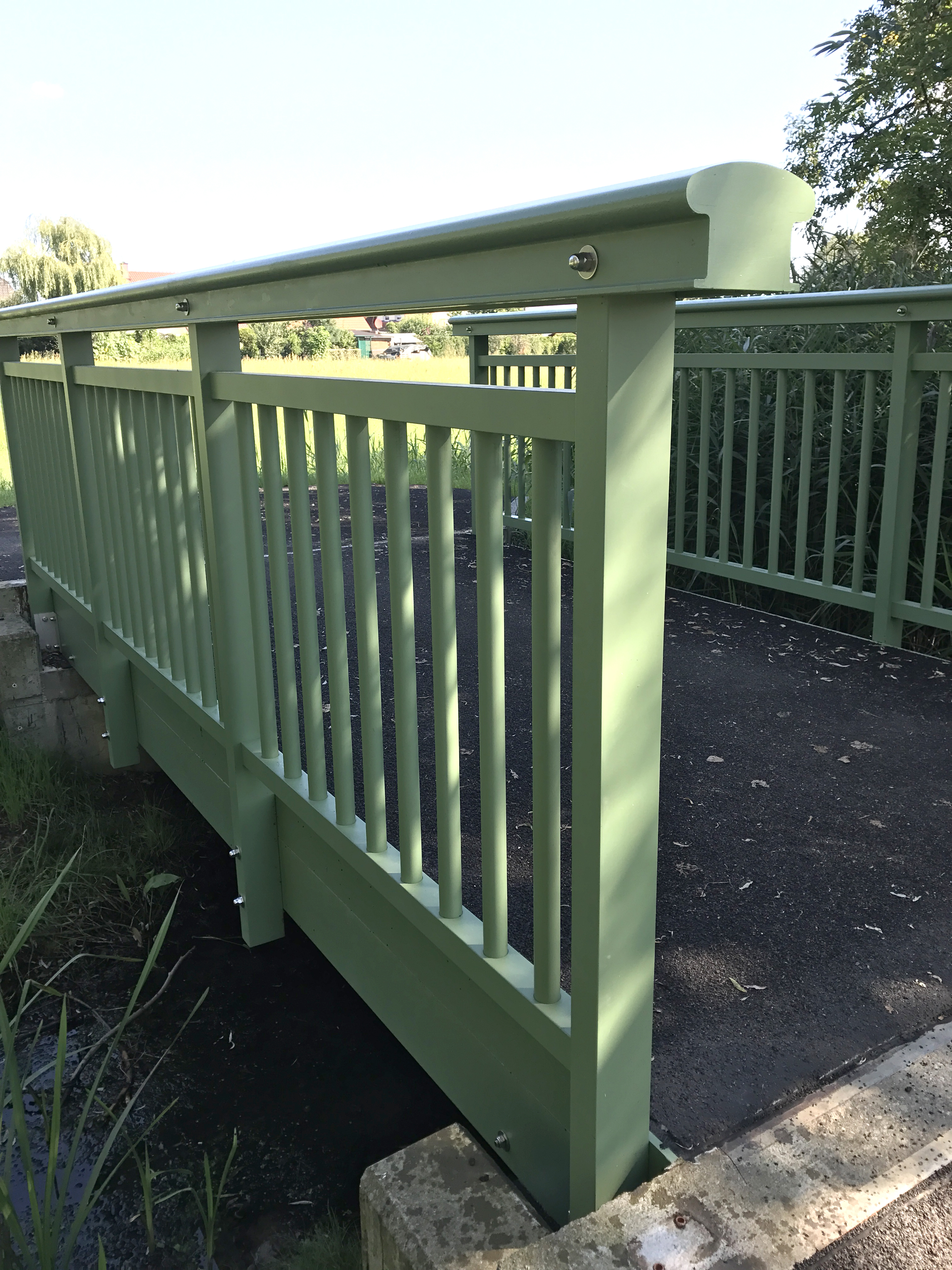

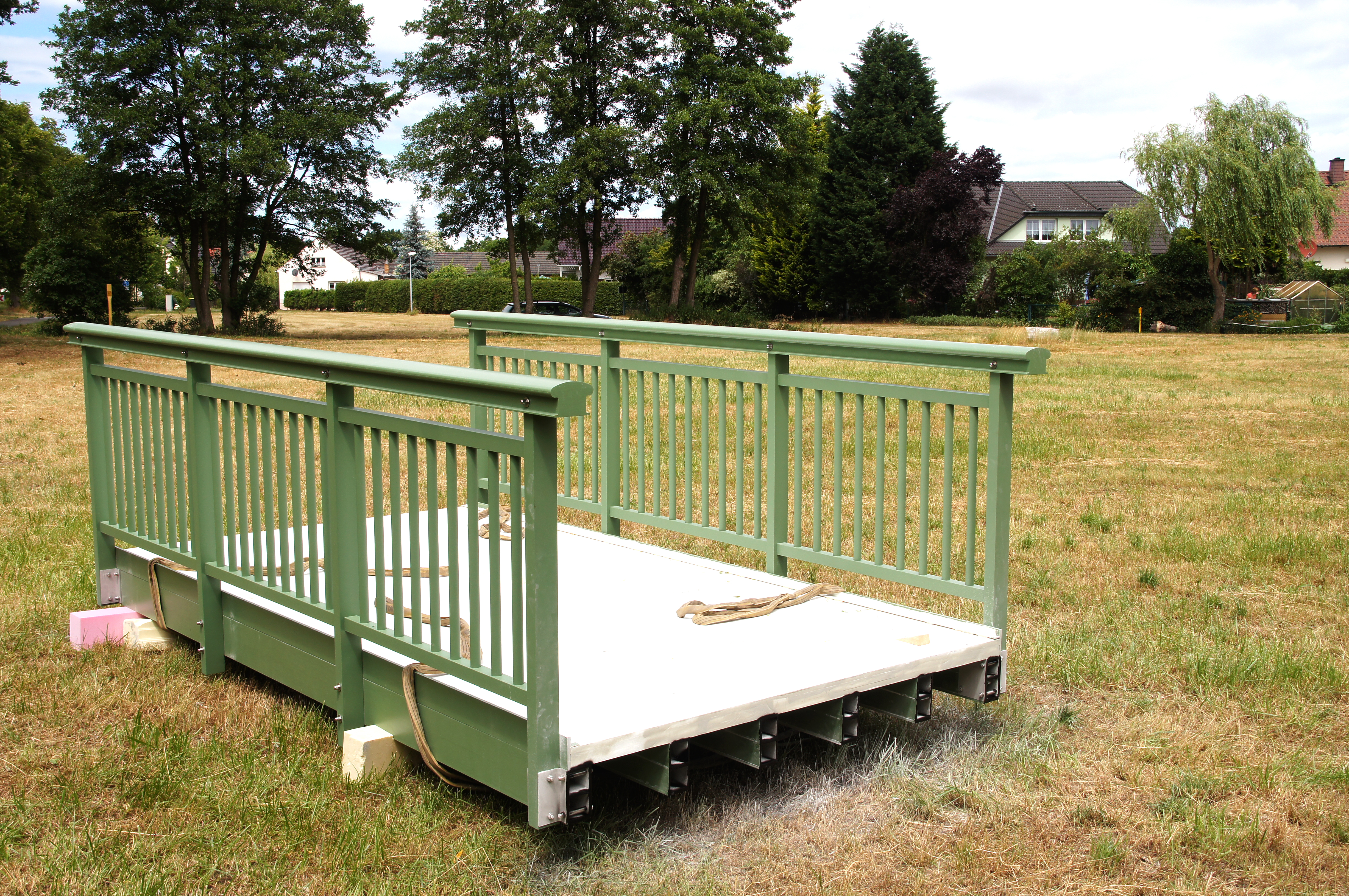

With the unique characteristics of the handrails,, they can be used for a wide range of handrail solutions such as railings, stairs, bridges, walkways and platforms. The low thermal conductivity allows a warm feel of the handrail even in temperatures below freezing point.



Quality and standards
Our profiles are certified according to a number of recognized standards, including CE, aBG and En13706. This is your guarantee that you get a high, consistent quality every time you shop with us

Quality and standards

ISO 9001

ISO At Fiberline Building Profiles we use the quality management system ISO 9001 as an active tool.

EN 13706-3:2002

Our structural profiles and planks are certified according to the European standard EN 13706, which applies solely to pultruded profiles for structural purposes.

CE-marking

Our entire programme of fibreglass profiles and planks are CE marked, which is your guarantee that our building materials meet existing requirements in EU.
Click here for more info about Fiberline certifications and norms

Specifications

Moment of inertia 5,55x106 mm4
E-modul 28000.0 MPa
Colour RAL 7035
Quality CE
Weight 6.8 kg/m.

Video

Downloads

Standard lengths

 180 x 120 x 8 x 6000  mm
180 x 120 x 8 x 6000 mm
Item no. 1200000010

Out Of Stock

Height

180 mm

Width

120 mm

Thickness

8/8

Length

6000 mm

Tolerance

+20/-0

Quality

Color

Light grey

€ 781.50

excl. VAT

Cut in two

Tick the box if you want the profile to be cut into two identical lenghts of:
Length (mm): 3000 Tolerance: +/-5

You need to be a member to buy this product.

Log in to your company account and get access to order products with custom length and get an overview of agreed discounts.

Apply for membership

Please note: Estimated shipping time is approx. 5-14 business days.

A minimum quantity order of 0 m is required

Fiberline can use the cut-off waste for recycling

Profiles that can no longer be used must be taken to a recycling centre. We’ll take care of the process.

Please select one of the two options above to proceed.
Note! You have meters. Left to cut from: mm. Note! You need to add meters. Note! You need to remove meters. Note! You have mm. Left to cut from: mm. Note! You need to add mm. Note! You need to remove mm.

Summary

x
Handling fee
x
Total excl. VAT
VAT
Total excl. VAT Total incl. VAT
Out of stock
Handling fee for cut-offs:
Handling fees are charged for each individual product in an order.
Price per cut:
 180 x 120 x 8 x 12000  mm
180 x 120 x 8 x 12000 mm
Item no. 1200000005

4-10 days

Items in stock: 57

Height

180 mm

Width

120 mm

Thickness

8/8

Length

12000 mm

Tolerance

+20/-0

Quality

Color

Light grey

€ 1,563.00

excl. VAT

Cut in two

Tick the box if you want the profile to be cut into two identical lenghts of:
Length (mm): 6000 Tolerance: +/-5

You need to be a member to buy this product.

Log in to your company account and get access to order products with custom length and get an overview of agreed discounts.

Apply for membership

Please note: Estimated shipping time is approx. 5-14 business days.

A minimum quantity order of 0 m is required

Fiberline can use the cut-off waste for recycling

Profiles that can no longer be used must be taken to a recycling centre. We’ll take care of the process.

Please select one of the two options above to proceed.
Note! You have meters. Left to cut from: mm. Note! You need to add meters. Note! You need to remove meters. Note! You have mm. Left to cut from: mm. Note! You need to add mm. Note! You need to remove mm.

Summary

x
Handling fee
x
Total excl. VAT
VAT
Total excl. VAT Total incl. VAT
Handling fee for cut-offs:
Handling fees are charged for each individual product in an order.
Price per cut:

Customized lengths (min. quantity required)

180 x 120 x 8 mm
180 x 120 x 8 mm
Item no. 120000P

Production & delivery: 8-10 weeks.

Height

180 mm

Width

120 mm

Thickness

8/8

Length

-

Tolerance

-

Quality

Color

Light grey

€ 130.25

excl. VAT

You need to be a member to buy this product.

Log in to your company account and get access to order products with custom length and get an overview of agreed discounts.

Apply for membership

Please note: Estimated shipping time is approx. 5-14 business days.

A minimum quantity order of 0 m is required

Fiberline can use the cut-off waste for recycling

Profiles that can no longer be used must be taken to a recycling centre. We’ll take care of the process.

Please select one of the two options above to proceed.
Note! You have meters. Left to cut from: mm. Note! You need to add meters. Note! You need to remove meters. Note! You have mm. Left to cut from: mm. Note! You need to add mm. Note! You need to remove mm.

Summary

x
Handling fee
x
Total excl. VAT
VAT
Total excl. VAT Total incl. VAT
Handling fee for cut-offs:
Handling fees are charged for each individual product in an order.
Price per cut:

Other products in this category

70 x 60 x 5 mm
70 x 60 x 5 mm
Item no.: 122007
Standard
Explanation
This is a standard product and is therefore usually in stock (intermediate sales reserved).

In stock

€ 16.35 € 23.35 (-30% on selected lengths)
Meter price excl. VAT
80 x 80 x 7 mm
80 x 80 x 7 mm
Item no.: 122051
Standard
Explanation
This is a standard product and is therefore usually in stock (intermediate sales reserved).

In stock

€ 24.05 € 40.08 (-40% on selected lengths)
Meter price excl. VAT

Accessories

0° bracket for 120 mm
0° bracket for 120 mm
Item no.: 161200

In stock

0° for 160 mm bracket
0° for 160 mm bracket
Item no.: 161600

In stock

0° for 200 mm bracket
0° for 200 mm bracket
Item no.: 162000

In stock

0° for 240 mm bracket
0° for 240 mm bracket
Item no.: 162400

In stock

0° for 300 mm bracket
0° for 300 mm bracket
Item no.: 163000

Out of stock

90° for 120 mm bracket
90° for 120 mm bracket
Item no.: 161204

In stock

90° for 160 mm bracket
90° for 160 mm bracket
Item no.: 161604

Out of stock

90° for 200 mm bracket
90° for 200 mm bracket
Item no.: 162004

In stock

90° for 240 mm bracket
90° for 240 mm bracket
Item no.: 162404

In stock

90° for 300 mm bracket
90° for 300 mm bracket
Item no.: 163004

In stock

Swin BC Binder Edge Sealant
Swin BC Binder Edge Sealant
Item no.: 148500

In stock

200 x 4,9 mm Carbon Fiber Lamella (CFL)
200 x 4,9 mm Carbon Fiber Lamella (CFL)
Item no.: 030884
Standard
Explanation
This is a standard product and is therefore usually in stock (intermediate sales reserved).

In stock

€ 14.00
Meter price excl. VAT

Combining advantages

CE MARKING

Our products are CE certified according to the EN13706 1-3 standard. This certification is your guarantee of consistently high quality every time you buy from us and use our products. Read more

LOW WEIGHT

Fiberglass enables lightweight and robust constructions, making installation faster. Although the material is comparable to steel, the specific weight of Fiberglass is only a quarter of steel. Read more

STRENGTH & STIFFNESS

Fiberglass is an exceptionally strong material, rivaling steel, aluminum, and wood. Composite profiles offer similar weight to aluminum, while being just 20% the weight of concrete and 40% of steel, making them highly efficient. Read more

CORROSION-FREE

Composite materials are generally very durable, with only a few exceptions. They resist a variety of aggressive liquids and environments, resulting in long lifespan and minimal need for maintenance. Read more

WEATHER RESISTANT

Fiberglass is UV-resistant and can withstand temperatures between -40 and +80 degrees Celsius without deterioration of its properties. Additionally, it tolerates seawater and other atmospheric influences. Read more

ELECTRICAL INSULATION

Fiberglass profiles are electrically insulating. They are suitable for use in connection with all electrical constructions, such as along railway tracks, power plant installations, etc., as they are suitable for both low and medium voltage. Read more

EASY TO WORK WITH

The processing of fiberglass profiles is significantly easier than for metals such as steel, and just as efficient as for wood. This makes it easy to handle solutions with our profiles on site. Read more

THERMALLY INSULATING

Fiberline's fiberglass profiles have a significantly higher thermal insulating capacity compared to steel and aluminum. Read more

SUSTAINABLE

Fiberline's products are manufactured energy-efficiently through pultrusion. The low weight relative to strength and long lifespan make them a cost- and energy-efficient alternative. Read more
