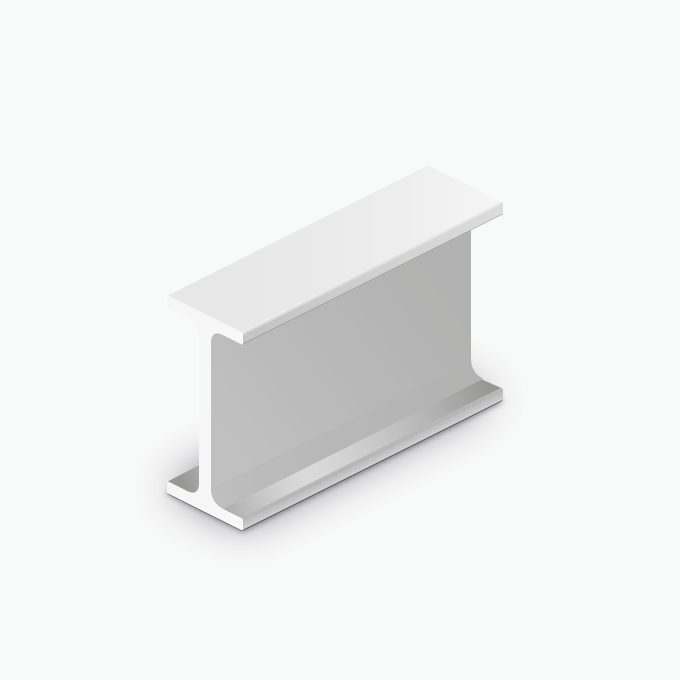

I-profiles 200 x 100 x 10 mm

Fiberline's fibreglass I-profiles combine a number of unique properties such as outstanding stiffness-to-weight ratio and corrosion resistance in almost any environment. This makes the profiles a cost-effective alternative to steel and aluminum. Other advantages include electrical and thermal insulation as well as easy on-site machining.

Buy now Check stock status See standard price list

+4536388100

Get in touch

Not a member yet?

See personal prices, cut to size & view order history.

Request for a login

Need samples?

Why not buy a sample box before making up your mind?

Buy samples

Description

Application
With the high strength and stiffness of the I-profile the range of applications include girders in beam bridges as well as support beams for flooring and platforms. Due to the low weight and water absorption of the material, the profiles are also used for moveable floors in swimming pools.

Technical data
For Technical data, press the question mark (?) on the product variant below.

Quality and standards
Our profiles are certified according to a number of recognised standards, including CE, aBG and EN13706. This is your guarantee that you get a high, consistent quality every time you shop with us.

Quality and standards

EN 13706-3:2002

Our structural profiles and planks are certified according to the European standard EN 13706, which applies solely to pultruded profiles for structural purposes.

ISO 9001

ISO At Fiberline Building Profiles we use the quality management system ISO 9001 as an active tool.

CE-marking

Our entire programme of fibreglass profiles and planks are CE marked, which is your guarantee that our building materials meet existing requirements in EU.

Click here for more info about Fiberline certifications and norms

Specifications

Cross-sectional area	3890.0 mm²
Moment of inertia	23,6x10⁶ mm⁴
E-modul	30000.0 MPa
Colour	RAL 7035
Quality	CE
Weight	6.98 kg/m.

Video

Downloads

.pdf Data sheet .dwg .dwg files .stp .stp files

Standard lengths

200 x 100 x 10 x 6000 mm

Item no. 1000790011

4-10 days

Items in stock: 76

Height

200 mm

Width

100 mm

Thickness

10/10

Length

6000 mm

Tolerance

+20/-0

Quality

Color

Light grey

€ 609.12

excl. VAT

Cut in two

Tick the box if you want the profile to be cut into two identical lenghts of:

Length (mm): 3000 Tolerance: +/-5

Cut to size Custom produced lengths

Cut your item down to the sizes you need for your project. The current profile length you have selected will be cut up to the lengths you specify below under "cutting". If you want more lengths cut in the same way, increase the number (on the green button).

You need to be a member to buy this product.

Log in to your company account and get access to order products with custom length and get an overview of agreed discounts.

Apply for membership

Please note: Estimated shipping time is approx. 5-14 business days.

A minimum quantity order of 700 m is required

Fiberline can use the cut-off waste for recycling

Profiles that can no longer be used must be taken to a recycling centre. We’ll take care of the process.

I wish Fiberline handles the profile remnants I want to receive the profile remnants

Please select one of the two options above to proceed.

Note! You have meters. Left to cut from: mm. Note! You need to add meters. Note! You need to remove meters. Note! You have mm. Left to cut from: mm. Note! You need to add mm. Note! You need to remove mm.

Summary

x
Handling fee
x

Total excl. VAT
VAT

Total excl. VAT Total incl. VAT

Handling fee for cut-offs:

Handling fees are charged for each individual product in an order.

Price per cut:

200 x 100 x 10 x 12000 mm

Item no. 1000790016

4-10 days

Items in stock: 68

Height

200 mm

Width

100 mm

Thickness

10/10

Length

12000 mm

Tolerance

+20/-0

Quality

Color

Light grey

€ 1,218.24

excl. VAT

Cut in two

Tick the box if you want the profile to be cut into two identical lenghts of:

Length (mm): 6000 Tolerance: +/-5

Cut to size Custom produced lengths

You need to be a member to buy this product.

Log in to your company account and get access to order products with custom length and get an overview of agreed discounts.

Apply for membership

Please note: Estimated shipping time is approx. 5-14 business days.

A minimum quantity order of 700 m is required

Fiberline can use the cut-off waste for recycling

Profiles that can no longer be used must be taken to a recycling centre. We’ll take care of the process.

I wish Fiberline handles the profile remnants I want to receive the profile remnants

Please select one of the two options above to proceed.

Summary

x
Handling fee
x

Total excl. VAT
VAT

Total excl. VAT Total incl. VAT

Handling fee for cut-offs:

Handling fees are charged for each individual product in an order.

Price per cut:

Other lengths

200 x 100 x 10 x 6390 mm

Item no. 1000790218

4-10 days

Items in stock: 1

Height

200 mm

Width

100 mm

Thickness

10/10

Length

6390 mm

Tolerance

+20/-0

Quality

Color

Light grey

€ 648.71

excl. VAT

Cut to size Custom produced lengths

You need to be a member to buy this product.

Log in to your company account and get access to order products with custom length and get an overview of agreed discounts.

Apply for membership

Please note: Estimated shipping time is approx. 5-14 business days.

A minimum quantity order of 700 m is required

Fiberline can use the cut-off waste for recycling

Profiles that can no longer be used must be taken to a recycling centre. We’ll take care of the process.

I wish Fiberline handles the profile remnants I want to receive the profile remnants

Please select one of the two options above to proceed.

Summary

x
Handling fee
x

Total excl. VAT
VAT

Total excl. VAT Total incl. VAT

Handling fee for cut-offs:

Handling fees are charged for each individual product in an order.

Price per cut:

Customized lengths (min. quantity required)

200 x 100 x 10 mm

Item no. 100079P

Production & delivery: 8-10 weeks.

Height

200 mm

Width

100 mm

Thickness

10/10

Length

Tolerance

Quality

Color

Light grey

€ 101.52

excl. VAT

Cut to size Custom produced lengths

You need to be a member to buy this product.

Log in to your company account and get access to order products with custom length and get an overview of agreed discounts.

Apply for membership

Please note: Estimated shipping time is approx. 5-14 business days.

A minimum quantity order of 700 m is required

Fiberline can use the cut-off waste for recycling

Profiles that can no longer be used must be taken to a recycling centre. We’ll take care of the process.

I wish Fiberline handles the profile remnants I want to receive the profile remnants

Please select one of the two options above to proceed.

Summary

x
Handling fee
x

Total excl. VAT
VAT

Total excl. VAT Total incl. VAT

Handling fee for cut-offs:

Handling fees are charged for each individual product in an order.

Price per cut:

Outlet

200 x 100 x 10 x 2200 mm

Item no. 1000790186

4-10 days

Items in stock: 2

Height

200 mm

Width

100 mm

Thickness

10/10

Length

2200 mm

Tolerance

+20/-0

Quality

Color

Light grey

€ 134.00 € 223.34

(-40%)

excl. VAT

Cut to size Custom produced lengths

You need to be a member to buy this product.

Log in to your company account and get access to order products with custom length and get an overview of agreed discounts.

Apply for membership

Please note: Estimated shipping time is approx. 5-14 business days.

A minimum quantity order of 700 m is required

Fiberline can use the cut-off waste for recycling

Profiles that can no longer be used must be taken to a recycling centre. We’ll take care of the process.

I wish Fiberline handles the profile remnants I want to receive the profile remnants

Please select one of the two options above to proceed.

Summary

x
Handling fee
x

Total excl. VAT
VAT

Total excl. VAT Total incl. VAT

Handling fee for cut-offs:

Handling fees are charged for each individual product in an order.

Price per cut:
